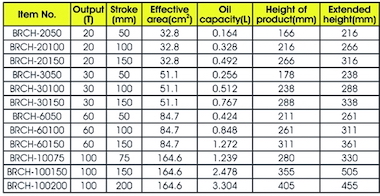

Item NO.:BRCH-2050/BRCH-20100/BRCH-20150/BRCH-3050/BRCH-30100/BRCH-30150/BRCH-6050/BRCH-60100/BRCH-60150/BRCH-10075/BRCH-100150/BRCH-100200

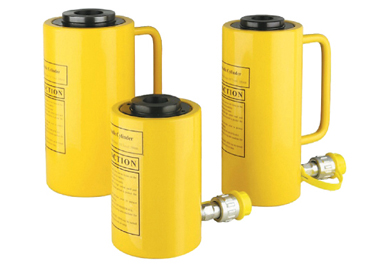

Name:BRCH Single acting hollow plunger cylinder

Steel base plate and saddle for protection the hollow piston and cylinder damage and increasing abrasion performance

Dust ring stop the dust into cylinder during extension

Floating type plunger prevents the block caused by slight unbalance loading of piston

Step-limited piston prevents over-travel and is capable of stopping the spring compressed completely

Wear ring prevent metal to metal contact, increasing cylinder life and resistance to be scratched

High-efficient seal extends cylinder life

Handles included on all models
